Fortinet FortiOS SSL VPN 2FA Bypass (CVE-2020-12812)

FortiOS SSL VPN

CVE-2020-12812 CVSS 7.7 Authentication Bypass 2FA Bypass Fortinet

Overview

Threat actors are actively exploiting a five-year-old authentication bypass vulnerability in Fortinet FortiOS SSL VPN that allows attackers to circumvent two-factor authentication (2FA) and gain unauthorized access to protected VPN endpoints. CVE-2020-12812 is an improper authentication flaw where FortiOS treats usernames as case-sensitive, while LDAP (Lightweight Directory Access Protocol) directories typically are case-insensitive. This discrepancy creates an authentication logic flaw: when attackers submit valid credentials with altered username casing (e.g., "Admin" instead of "admin"), FortiOS fails to match the local user account (which has 2FA enabled) and instead falls back to LDAP authentication, which does not enforce 2FA. The vulnerability affects misconfigured FortiGate devices where local users with 2FA are linked to LDAP, and the same users exist in LDAP groups configured in authentication policies for SSL VPN or IPsec VPN. Despite being patched in 2020, the flaw remains exploited in 2025 due to widespread unpatched deployments and persistent misconfigurations. Fortinet has issued warnings about active exploitation in the wild, with attackers leveraging the bypass to gain VPN access, administrative privileges, and establish persistence for lateral movement within enterprise networks. The vulnerability underscores risks of legacy vulnerabilities in internet-facing infrastructure and authentication configuration weaknesses.

Vulnerability Specifications

Attribute Details
CVE ID CVE-2020-12812
CVSS Score 9.8 (Critical)
CWE Classification CWE-287: Improper Authentication
Vulnerability Type Authentication Bypass, 2FA Bypass, Logic Flaw
Affected Product Fortinet FortiOS (FortiGate devices)
Affected Component SSL VPN, IPsec VPN authentication
Affected Versions FortiOS 6.4.0, 6.2.0 - 6.2.3, 6.0.9 and earlier
Patched Versions FortiOS 6.4.1+, 6.2.4+, 6.0.10+
Attack Vector Network (remote exploitation via VPN login interface)
Attack Complexity Low (requires valid username/password but exploits logic flaw)
Privileges Required Low (valid LDAP credentials, no 2FA token needed)
User Interaction None
Scope Changed (attacker gains access beyond authentication boundary)
Confidentiality Impact High (full VPN access, potential data exposure)
Exploit Availability Active exploitation confirmed (2025)
Patch Date 2020 (FortiOS 6.0.10, 6.2.4, 6.4.1 releases)
Disclosure Date July 2020
Exploitation Timeline 5 years post-disclosure (2020 - 2025)
Configuration Req. Misconfiguration: Local users with 2FA + LDAP group policies
Authentication Method SSL VPN, IPsec VPN
LDAP Integration Required (vulnerability exploits LDAP case-insensitivity)

Technical Details

alt text

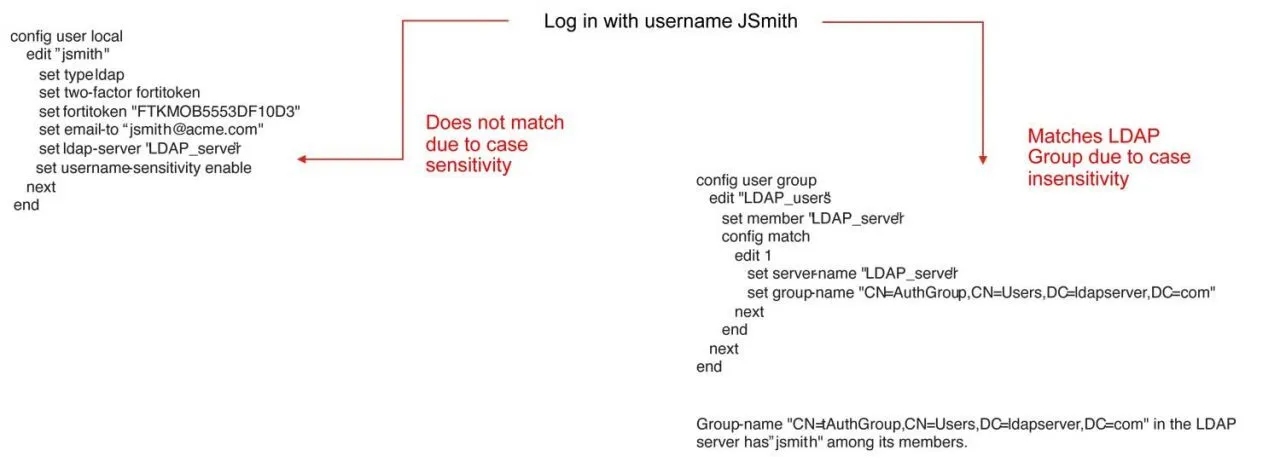

Root Cause: Case Sensitivity Mismatch

CVE-2020-12812 stems from inconsistent username handling between FortiOS and LDAP:

  • FortiOS Behavior: FortiOS treats usernames as case-sensitive when matching local user accounts
  • Local user account "admin" ≠ "Admin" ≠ "ADMIN" in FortiOS internal database

  • Each casing variant treated as distinct username

  • LDAP Behavior: LDAP directories (Active Directory, OpenLDAP) typically treat usernames as case-insensitive

  • "admin", "Admin", "ADMIN" all resolve to same LDAP user object
  • LDAP bind operations succeed regardless of username casing if password correct

Authentication Flow in Vulnerable Configurations

In misconfigured FortiGate devices with local users + LDAP integration:

Normal Authentication (Correct Case)

  1. User submits credentials: Username "admin", password "P@ssw0rd"
  2. FortiOS local database lookup: Exact match found for "admin"
  3. 2FA enforcement: FortiOS detects local user has 2FA enabled
  4. 2FA prompt: User must provide token (TOTP, SMS, hardware token)
  5. Successful authentication: After 2FA verification, VPN access granted

Exploited Authentication (Altered Case)

  1. Attacker submits credentials: Username "Admin" (capital A), password "P@ssw0rd"
  2. FortiOS local database lookup: No exact match for "Admin" (only "admin" exists)
  3. Fallback to LDAP: FortiOS attempts LDAP authentication for "Admin"
  4. LDAP authentication succeeds: LDAP case-insensitively matches "Admin" → "admin", password verified
  5. LDAP group policy applied: User in LDAP group with VPN access policy
  6. 2FA bypassed: LDAP authentication path does not enforce local user's 2FA requirement
  7. Unauthorized access granted: Attacker gains VPN access without 2FA token

Vulnerable Configuration Elements

The vulnerability requires specific misconfigurations to be exploitable:

  1. Local User with 2FA: User account created in FortiOS local database with 2FA enabled

    config user local
    edit "admin"
        set type password
        set two-factor fortitoken
    next
end

  2. Same Username in LDAP: Matching user exists in LDAP directory (Active Directory, OpenLDAP)

  3. LDAP user: cn=admin,ou=Users,dc=example,dc=com

  4. LDAP Group Policy: LDAP group containing user is referenced in authentication policy

    config user group
    edit "vpn-users-ldap"
        set member "ldap-server"
        config match
            edit 1
                set server-name "ldap-server"
                set group-name "CN=VPN Users,OU=Groups,DC=example,DC=com"
            next
        end
    next
end

  5. VPN Policy Using LDAP Group: SSL/IPsec VPN policy allows LDAP group without enforcing local 2FA

    config vpn ssl settings
    set source-interface "wan1"
    set source-address "all"
    config authentication-rule
        edit 1
            set groups "vpn-users-ldap"
            set portal "full-access"
        next
    end
end

Authentication Logic Flaw

The vulnerability exploits FortiOS authentication decision tree:

Incoming VPN authentication attempt
    ↓
Check local user database (case-sensitive)
    ↓
    ├── Match found → Enforce local user settings (2FA required)
    ↓
    └── No match → Fallback to LDAP authentication
        ↓
        LDAP bind attempt (case-insensitive)
        ↓
        ├── LDAP bind success → Check LDAP group policies
        │   ↓
        │   └── User in authorized LDAP group → Grant access (NO 2FA)
        ↓
        └── LDAP bind failure → Deny access

Attacker manipulates case to force "No match" path, bypassing local 2FA enforcement.

Case Variation Examples

Attackers test multiple case permutations:

Original Username Case Variations LDAP Match 2FA Bypassed
admin Admin, ADMIN, aDmIn Yes Yes
jsmith JSmith, JSMITH, jSmith Yes Yes
vpnuser VpnUser, VPNUSER, VPNuser Yes Yes

Automated tools iterate through common case patterns to identify exploitable accounts.

Attack Scenario

Step-by-Step Exploitation

  1. Reconnaissance: Target Identification
    Attacker identifies Fortinet FortiGate SSL VPN endpoints exposed to internet via:

    • Port scanning: Ports 443/tcp (HTTPS), 10443/tcp (SSL VPN)
    • Service fingerprinting: Banner grabbing reveals "FortiGate" in HTTP headers or login page
    • Search engines: Shodan, Censys queries: product:"FortiGate", "FortiGate SSL-VPN"
    • Mass scanning: Automated tools scan entire IP ranges for FortiGate VPN portals

    Attacker identifies target: https://vpn.targetcompany.com running FortiOS.

  2. Credential Acquisition
    Attacker obtains valid LDAP credentials via:

    • Phishing: Spear-phishing campaigns targeting employees to steal domain credentials
    • Credential stuffing: Testing leaked passwords from data breaches against LDAP usernames
    • Password spraying: Common passwords ("Welcome2025", "CompanyName123") against known usernames
    • Prior breach: Credentials from earlier network compromise or insider threat

    Attacker acquires: Username "admin", Password "P@ssw0rd!2025".

  3. Vulnerability Testing: Case Variation
    Attacker tests case-altered username to probe for CVE-2020-12812:

    • Navigate to SSL VPN login portal: https://vpn.targetcompany.com
    • Test #1: Submit "admin" (lowercase) → Prompted for 2FA token → Indicates local user with 2FA
    • Test #2: Submit "Admin" (capital A) with same password → No 2FA prompt → Successful login

    Confirmation: Device vulnerable, 2FA bypass successful via case alteration.

  4. Authentication Bypass
    Attacker authenticates using altered case credentials:

    • Username: Admin (or ADMIN, aDmIn, etc.)
    • Password: P@ssw0rd!2025
    • FortiOS fails to match local "admin" account (case mismatch)
    • FortiOS falls back to LDAP authentication
    • LDAP authenticates "Admin" case-insensitively → Binds successfully
    • LDAP group membership verified: User in "VPN Users" group
    • VPN access granted without 2FA → Attacker receives VPN IP, tunnel established

  5. VPN Access Established
    Attacker now has remote network access:

    • VPN tunnel active: Attacker assigned internal IP (e.g., 10.10.10.50)
    • Network routes pushed: Access to internal subnets (10.0.0.0/8, 192.168.0.0/16)
    • DNS resolution: Internal DNS servers accessible
    • Bypassed perimeter defenses: Firewall, IDS/IPS bypassed via legitimate VPN tunnel

    Attacker operates as authenticated insider from external location.

  6. Privilege Escalation (If Admin User)
    If compromised account has administrative privileges:

    • Access FortiGate management interface: https://vpn.targetcompany.com:443 (admin portal)
    • Login with same case-altered credentials: "Admin" / password

    • Gain full FortiGate administrative access:

      • Modify firewall rules to allow unrestricted traffic
      • Disable security features (IPS, antivirus, web filtering)
      • Extract VPN credentials for all users
      • Create backdoor accounts for persistence
      • Access VPN logs (identify active users, connection times)

  7. Internal Reconnaissance
    Attacker performs network reconnaissance from VPN session:

    • Network scanning: Nmap scans of internal IP ranges to identify live hosts
    • Service enumeration: Identify SMB shares, databases, web servers, domain controllers
    • Active Directory enumeration: Use BloodHound, PowerView to map AD structure
    • Credential harvesting: Deploy Mimikatz, Impacket to extract credentials from accessible systems

    Attacker identifies: Domain controller at 10.0.0.10, file server at 10.0.0.20, database at 10.0.0.30.

  8. Lateral Movement
    Using VPN access as pivot point:

    • SMB exploitation: Access file shares using compromised credentials
    • Pass-the-Hash: Use harvested NTLM hashes to authenticate to additional systems
    • RDP/SSH: Remote desktop to workstations and servers
    • Exploit internal vulnerabilities: Target unpatched systems (EternalBlue, ZeroLogon)
    • Move toward high-value targets: Domain controllers, backup servers, financial databases

  9. Data Exfiltration
    Attacker exfiltrates sensitive data through VPN tunnel:

    • Intellectual property: Source code, design documents, patents
    • Financial data: Accounting databases, transaction records
    • Customer information: PII, payment card data, email addresses
    • Credentials: Password databases, SSH keys, API tokens
    • Exfiltration method: Data transferred through VPN tunnel to attacker's infrastructure (appears as legitimate VPN traffic)

  10. Persistence and Backdoors
    Attacker establishes long-term access:

    • Create backdoor VPN accounts: Add new local/LDAP users for future access
    • Webshells: Deploy webshells on internal web servers
    • C2 implants: Install Cobalt Strike beacons, Metasploit agents on compromised hosts
    • Scheduled tasks: Create persistence mechanisms on Windows systems
    • Maintain VPN access: Continue using case-altered credentials until detected or patched

Impact Assessment

Successful 2FA bypass grants attackers full VPN access to internal networks, exposing sensitive data:

  • Internal network visibility: Attacker can access any internal resource reachable via VPN (file shares, databases, applications)
  • Data exfiltration: Intellectual property, financial records, customer data, employee information stolen
  • Credential theft: Attackers harvest additional credentials from internal systems, escalating access
  • Administrative access: If admin accounts compromised, attacker gains full FortiGate configuration access, exposing all VPN users, firewall policies, IPsec tunnels, and security settings

Confidentiality breach extends beyond initial compromise to entire network reachable via VPN.

While vulnerability primarily enables authentication bypass, follow-on actions threaten integrity:

  • Configuration tampering: Attackers with admin access modify firewall rules, disable security features, alter VPN policies
  • Backdoor creation: New accounts, modified policies ensure persistent access
  • Log manipulation: Attackers delete authentication logs to hide exploitation
  • Malware deployment: Ransomware, wipers, or trojans installed on internal systems
  • Data modification: Attackers alter financial records, customer data, or operational databases for fraud

Integrity impact indirect but significant in multi-stage attacks.

Direct availability impact limited, but post-exploitation actions can cause disruption:

  • Ransomware deployment: Attackers leverage VPN access to deploy ransomware network-wide, encrypting critical systems
  • Resource exhaustion: VPN tunnel used for excessive traffic, DDoS attacks, or cryptomining
  • Service disruption: Attackers delete configurations, shut down services, or deploy destructive malware
  • Incident response overhead: Investigation and remediation require VPN downtime, network segmentation changes

Availability typically impacted in later attack stages, not during initial bypass.

Attacker gains access beyond intended authentication boundary:

  • Perimeter bypass: Attacker circumvents VPN 2FA intended to protect network perimeter
  • Insider access: External attacker operates as authenticated insider with network access
  • Expanded attack surface: All internal systems reachable via VPN now accessible
  • Trust exploitation: VPN access often grants elevated privileges or access to sensitive zones

Scope change from external unauthenticated attacker to internal authenticated user represents critical security boundary breach.

Mitigation Strategies

Immediate Patching (Critical)

  • Apply FortiOS Security Updates: Update to patched FortiOS versions immediately:

    • FortiOS 6.0.x: Upgrade to 6.0.10 or later
    • FortiOS 6.2.x: Upgrade to 6.2.4 or later
    • FortiOS 6.4.x: Upgrade to 6.4.1 or later
    • FortiOS 7.x: Upgrade to latest stable release (all 7.x versions include fix)

  • Patch Verification: After update, verify CVE-2020-12812 addressed:

    • Check FortiOS release notes for CVE-2020-12812 mention
    • Test authentication with case-altered usernames (should enforce 2FA regardless)
    • Review FortiGate system logs for patch application confirmation

  • Emergency Patching Process: Prioritize SSL VPN-enabled devices:

    • Identify all FortiGate devices with SSL VPN or IPsec VPN enabled
    • Schedule emergency maintenance windows for patching
    • Test patches in lab environment before production deployment
    • Coordinate with stakeholders for minimal business disruption

Configuration Hardening

  • Disable Username Case Sensitivity: Configure FortiOS to treat usernames case-insensitively:

    config system global
    set auth-username-case-insensitive enable
end
    This prevents case-altered usernames from bypassing local user matching.

  • Eliminate Dual Authentication Paths: Remove configuration overlap between local users and LDAP group policies:

    • Option A: Use only local users with 2FA for VPN access (remove LDAP group policies)
    • Option B: Use only LDAP authentication with LDAP-enforced 2FA (remove local users from VPN policies)
    • Avoid: Configurations where same username exists in both local database and LDAP with different security policies

  • Enforce 2FA at Multiple Layers: Enable 2FA enforcement at policy level:

    config vpn ssl settings
    config authentication-rule
        edit 1
            set auth-method two-factor
        next
    end
end
    This ensures all VPN access requires 2FA regardless of authentication source.

  • LDAP Attribute Mapping: Configure LDAP to enforce 2FA via attributes:

    • Use LDAP attributes (e.g., mfaRequired=TRUE) to determine 2FA enforcement
    • Map LDAP 2FA attribute to FortiGate authentication policies

Access Control Hardening

  • Limit VPN User Scope: Apply principle of least privilege:

    • Create separate LDAP/local groups for VPN access vs. general users
    • Only grant VPN access to users who require remote access
    • Remove administrative accounts from VPN authentication policies (admins should access management interface separately, not via SSL VPN)

  • Implement Network Segmentation: Restrict VPN access to specific zones:

    • Create separate VPN portals for different access levels (user VPN, admin VPN)
    • Apply firewall policies limiting VPN users to only required resources
    • Use VLAN segmentation to isolate VPN traffic from critical systems

  • Conditional Access Policies: Implement context-aware authentication:

    • Require additional authentication factors for access from unknown IPs
    • Enforce device posture checks (antivirus, disk encryption) before VPN access
    • Implement geo-fencing (block VPN access from unexpected countries)

Monitoring and Detection

  • Authentication Log Monitoring: Monitor FortiGate logs for exploitation indicators:
    • Case-altered login attempts: Unusual username casing (e.g., "Admin" when user normally logs in as "admin")
    • Successful LDAP logins without 2FA: Authentication success via LDAP without 2FA verification
    • Repeated login attempts with variations: Multiple failed attempts followed by case-altered success

FortiOS log example:

logdesc="Authentication succeeded"
user="Admin"
authserver="ldap-server"
mfa_status="none"

  • SIEM Integration: Forward FortiGate logs to SIEM (Splunk, QRadar, Sentinel) for correlation:

    • Create alerts for authentication events with username case mismatches
    • Correlate VPN access with unusual network behavior (scanning, lateral movement)
    • Alert on VPN logins from unexpected geolocations or times

  • Anomaly Detection: Baseline normal VPN usage and detect deviations:

    • Alert on VPN access outside normal business hours
    • Detect unusual data transfer volumes through VPN
    • Flag connections to internal systems never previously accessed by user

  • Regular Audit of Linked Devices: Review FortiGate configurations:

    • Weekly audit of local user accounts and LDAP group policies
    • Verify no overlapping username configurations exist
    • Check for unauthorized accounts or policy changes

Administrative Best Practices

  • Separate Admin Accounts: Do not use VPN-accessible accounts for administration:

    • Create dedicated local admin accounts for FortiGate management
    • Disable SSL VPN access for admin accounts
    • Require admin access via dedicated management network or jump host

  • Principle of Least Privilege: Limit privileges for VPN users:

    • VPN users should not have administrative rights on FortiGate
    • Apply role-based access control (RBAC) within internal network
    • Separate VPN access from privileged account management

  • Regular Configuration Reviews: Quarterly security audits:

    • Review all authentication policies for misconfigurations
    • Verify 2FA enforcement for all remote access
    • Check for legacy configurations from pre-patch era

User and Admin Education

  • Security Awareness Training: Educate users on phishing and credential protection:

    • Train users to recognize credential phishing attempts
    • Emphasize importance of unique passwords for VPN access
    • Report suspicious login notifications or unexpected 2FA prompts

  • Admin Training: Ensure IT staff understand authentication logic:

    • Train administrators on proper FortiGate authentication configuration
    • Educate on risks of mixing local and LDAP authentication
    • Provide guidance on secure VPN deployment

Resources

Vendor Security Advisories
