Johnson Controls iSTAR Ultra Vulnerabilities

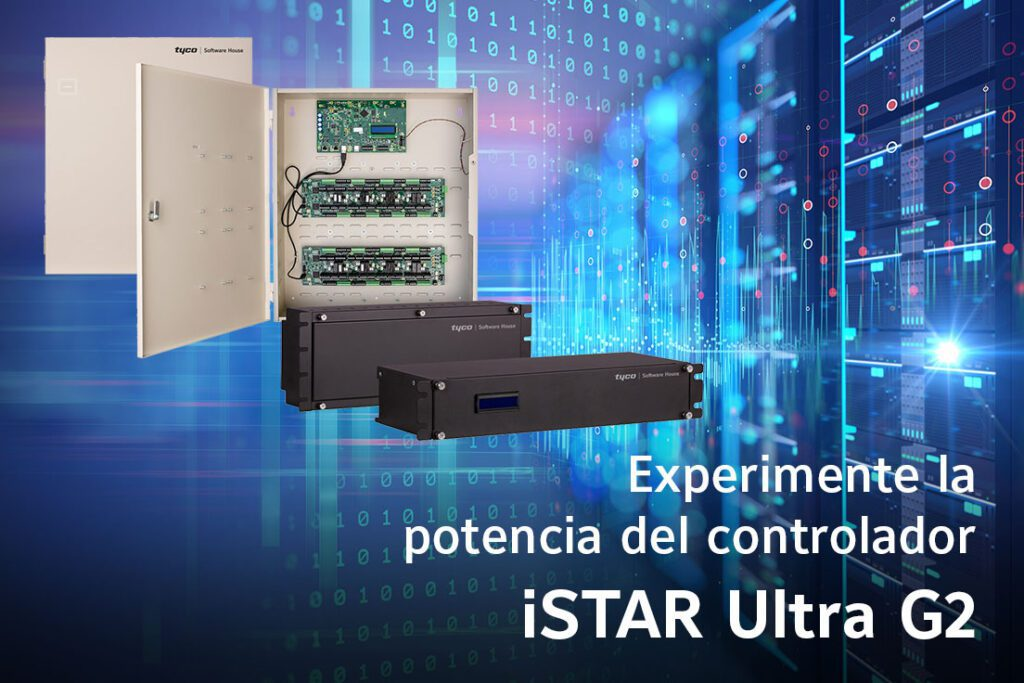

iSTAR Ultra

OS Command Injection Firmware Authentication Bypass Default Credentials

Overview

Multiple high-severity security vulnerabilities have been identified in Johnson Controls iSTAR Ultra series door controller devices, including iSTAR Ultra, iSTAR Ultra SE, iSTAR Ultra G2, iSTAR Ultra G2 SE, and iSTAR Edge G2 models. These flaws could allow attackers to modify firmware, gain elevated privileges, or access protected portions of the device, undermining access control integrity. Successful exploitation could result in unauthorized access to physical security systems, device takeover, and potential lateral movement within facility networks.

Technical Specifications

Attribute	Details
Vendor	Johnson Controls
Products	iSTAR Ultra, iSTAR Ultra SE, iSTAR Ultra G2, iSTAR Ultra G2 SE, iSTAR Edge G2
Vulnerability Types	OS Command Injection (CWE-78), Insufficient Verification of Firmware Authenticity (CWE-345), Default Credentials (CWE-1392)
Attack Vector	Network / Physical (depending on vulnerability)
Authentication	May be bypassed via default credentials
Complexity	Low
User Interaction	Not required
CVSS v4 Score	8.7 (High)

Affected Products

Firmware Versions: Versions prior to 6.9.3 are affected
Status: Patches available in firmware 6.9.3 and later

Vulnerability Details

OS Command Injection (CWE-78)

Improper input sanitization in the device's web interface allows privileged command execution. Attackers can inject malicious commands through input fields.

Insufficient Verification of Firmware Authenticity (CWE-345)

Weak verification mechanisms at boot time could allow tampered or malicious firmware to execute on the device, bypassing security controls.

Default Credentials / Weak Authentication (CWE-1392)

Default "root" credentials may be present in some versions, allowing attackers to gain immediate administrative access without authentication challenges.

Physical Interface Weaknesses

Certain vulnerabilities allow attackers with physical access via serial or USB console to access protected interfaces and sensitive system functions.

Insecure Storage of Sensitive Information

Protected data such as credentials and configuration may be exposed due to insecure storage mechanisms on the device.

Attack Scenario

Reconnaissance: Attacker identifies iSTAR Ultra controllers connected to a building access network through network scanning
Network Access: Attacker gains network connectivity to the device via exposed web interface or compromised local LAN
Exploit Web Interface: Attacker uses OS command injection flaw to execute unauthorized commands at elevated privilege
Privilege Escalation: Using default credentials or injection results, attacker obtains root-level access on the device firmware
Firmware/Control Manipulation: Attacker modifies firmware or configuration to weaken access control enforcement or establish persistent access

Potential Access Points

Exposed web management interface on building networks
Compromised local area network segments
Physical access to device serial or USB console ports
Default credential exploitation via remote or local access

Impact Assessment

IntegrityConfidentialityAvailabilityPhysical Security Impact

Unauthorized modification of access control configurations
Firmware manipulation and tampering
Alteration of door access permissions
Compromise of physical security enforcement

Exposure of sensitive configuration data
Access to credential and authentication information
Visibility into physical access patterns and logs
Potential exposure of facility security architecture

Disruption of door control systems
Denial of physical access for legitimate users
System lockout or malfunction
Service interruption for access control

Unauthorized Access: Unauthorized unlock or reconfiguration of access control points
Device Takeover: Full control over door controllers and physical security systems
Lateral Movement: Use compromised devices to pivot deeper into facility networks
Facility Compromise: Breach of physical security perimeter and access zones

Mitigation Strategies

🔄 Immediate Actions

Firmware Updates: Update affected iSTAR Ultra devices to firmware version 6.9.3 or later immediately
Credential Reset: Replace all default credentials with strong, unique passwords
Access Audit: Review and audit all administrative access to door controllers
Network Assessment: Identify all exposed iSTAR devices on the network

🛡️ Strong Authentication

Replace default "root" credentials with complex, unique passwords
Implement multi-factor authentication where supported
Use strong password policies (minimum length, complexity requirements)
Regularly rotate administrative credentials
Maintain separate credentials for each device

📊 Network Segmentation

Isolate access control devices from broader enterprise networks
Implement VLAN segmentation for physical security systems
Restrict administrative access to dedicated management networks
Apply firewall rules to limit access to controller interfaces
Use jump hosts or bastion servers for administrative access

🔒 Physical Security

Limit physical access to controller hardware
Install devices in secured enclosures with tamper protection
Implement tamper-evident seals on device housings
Monitor and log physical access to controller locations
Restrict USB and serial console port access

🔍 Monitoring & Detection

Monitor for unusual access attempts to controller web interfaces
Alert on configuration changes or firmware updates
Log all administrative actions and access control modifications
Deploy intrusion detection systems for physical security networks
Review logs regularly for suspicious command execution patterns
Monitor for use of default credentials or brute-force attempts

Resources and References

Official Documentation

Critical Warning

These vulnerabilities affect physical security systems controlling building access. Immediate firmware updates and credential changes are essential to prevent unauthorized physical access and facility compromise.
